Capabilities

• Supports DP 2.0, USB 3.2, and TBT Gen3 testing
• 22 GHz bandwidth (at –3dB)
• De-embeddable up to 30 GHz
• Allows transmitter and power delivery measurement access

General Description

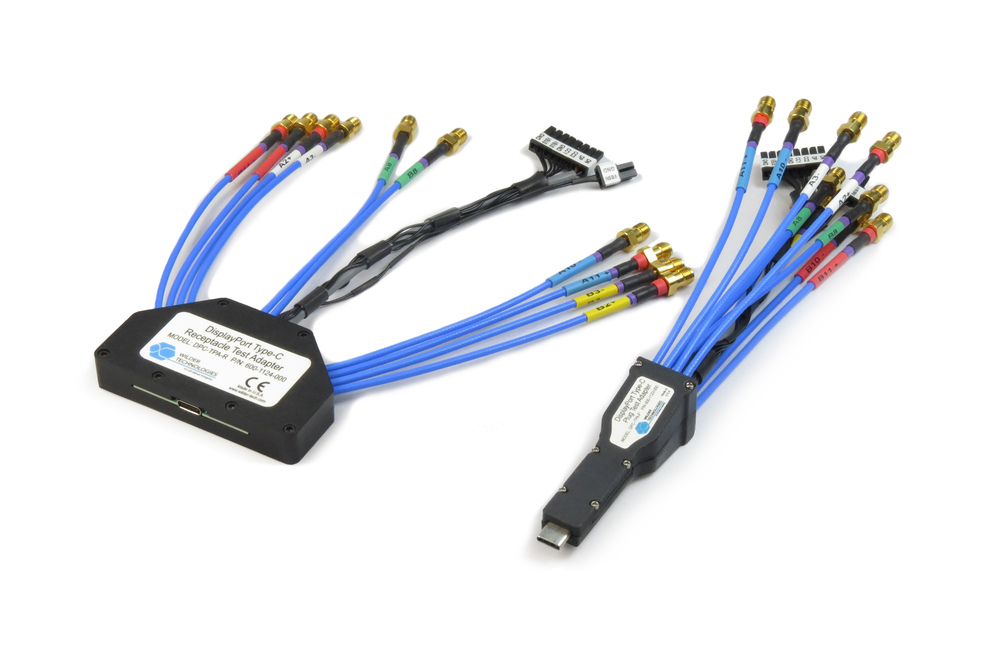

Wilder has been able to design robust plug and receptacle fixtures to support Display-Port over USB Type-C compliance testing.

Plug Adapter Kit: 640-0800-000
Receptacle Adapter Kit: 640-0801-000

Mated Insertion Loss (no de-embedding)

Mated Return Loss (no de-embedding)
