DisplayPort Type-C
Capabilities
- Supports DP 2.0, USB 3.2, and TBT Gen3 testing
- 22 GHz bandwidth (at –3dB)
- De-embeddable up to 30 GHz
- Allows transmitter and power delivery measurement access
General Description
Wilder has been able to design robust plug and receptacle fixtures to support Display-Port over USB Type-C compliance testing.

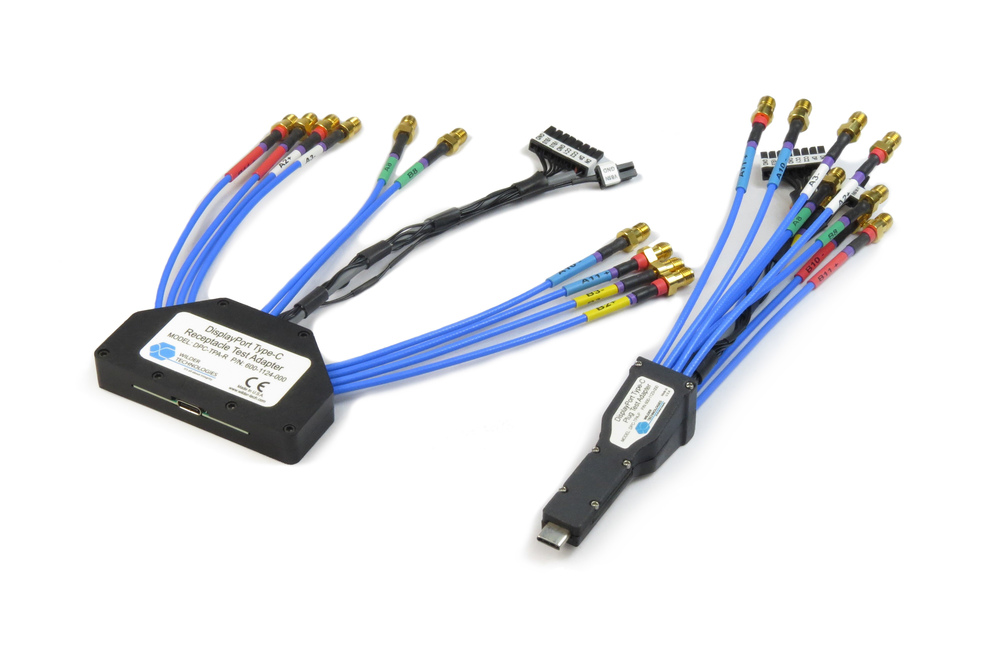

Plug Adapter Kit: 640-0800-000
Receptacle Adapter Kit: 640-0801-000

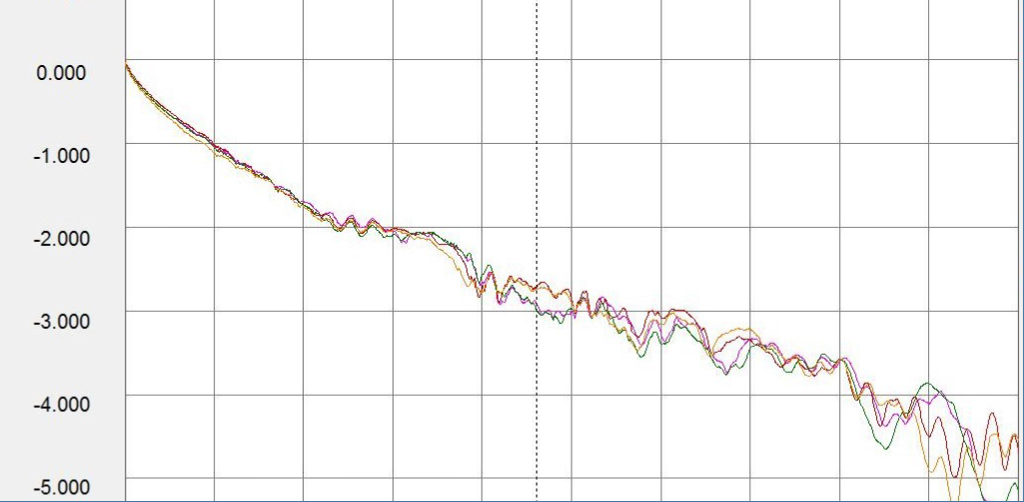

Mated Insertion Loss (no de-embedding)

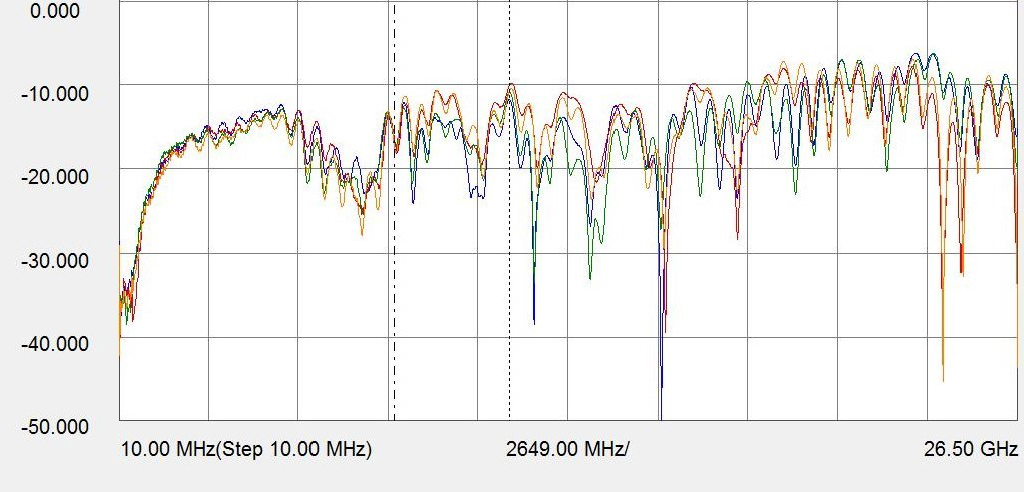

Mated Return Loss (no de-embedding)
