USB
USB Implementers Forum (USB-IF) is a non-profit organization dedicated to the development and promotion of Universal Serial Bus technology. USB Implementers Forum (USB-IF), announced the publication of the USB4™ specification, a major update to deliver the next-generation USB architecture that complements and builds upon the existing USB 3.2 and USB 2.0 architectures. The USB4 architecture is based on the Thunderbolt™ protocol specification recently contributed by Intel Corporation to the USB Promoter Group. It doubles the maximum aggregate bandwidth of USB and enables multiple simultaneous data and display protocols.
USB測試介紹
USB測試服務當前提供以下測試計劃。 這些測試會依據協會更新測試規範，以提高可信度並反映當前的規範。 如果您想了解更多信息或對USB-IF測試服務有疑問，請與我們聯繫。 欲知更多USB-IF標準技術的訊息，請參考 USB官方網站
- USB前期測試（ USB Pre-test）電氣訊號測試檢測
- USB除錯服務（ USB Debug Service）
- USB諮詢服務（ USB Consulting Service）
| USB | Tx | RX |
|---|---|---|
| 4.0 | ◎ | ◎ |
| 3.1 Gen1 | ◎ | ◎ |
| 3.1 Gen2 | ◎ | ◎ |
| 3.2 Gen1 | ◎ | ◎ |
| 3.2 Gen2 | ◎ | ◎ |
| 2.0 (HS | ◎ | N/A |
USB (3.1 Gen1/2 ; 3.2 / 4.0)
The USB testing service currently offers the following test plans. These documents are constantly being updated to improve readability and to reflect the current specifications. Please contact us if you would like more information or have questions about the USB testing service.
RX:
BERT (Bit Error Rate Tester)

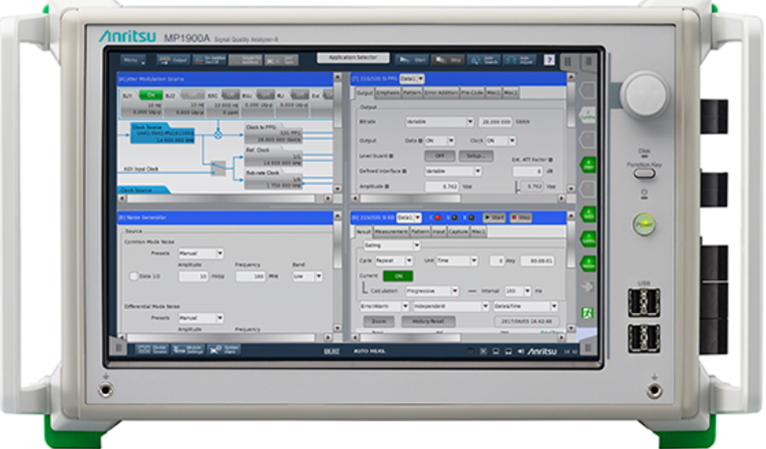

- Anritsu MP1900 PG/ED
The MP1900A Signal Quality Analyzer incorporates a Pulse Pattern Generator (PPG) module for generating the highest-quality, highest-amplitude signals in the industry, as well as an Error Detector (ED) module with the highest input sensitivity available.
Tx:
RT-Scope (Real Time Oscilloscope)
- Tektronix DPO75002SX * 2 (Data Measurement)
- Tektronix AFG (Toggle Pattern)
- Tektronix MSO6-4G (Clock Measurement)
DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition
