SAS/SATA
Serial ATA (SATA) and Serial Attached SCSI (SAS) are data storage protocol standards that have the primary function of transferring data between the host system and mass storage devices. Next-generation storage technologies such as 22.5 Gb/s SAS and 12Gb/s SATA enable a new performance class of storage hierarchy that unlocks the performance of servers and solid-state drives.
SAS/SATA測試介紹
SAS/SATA測試服務當前提供以下測試計劃。 這些測試會依據協會更新測試規範，以提高可信度並反映當前的規範。 如果您想了解更多信息或對SAS/SATA測試服務有疑問，請與我們聯繫。 SAS/SATA測試標準，請參照 SATA-IO官網與T10官網
- SAS/SATA前期測試（ SAS/SATA Pre-test）電氣訊號測試檢測
- SAS/SATA除錯服務（ SAS/SATA Debug Service）
- SAS/SATA諮詢服務（ SAS/SATA Consulting Service）
| SAS/SATA | Tx | RX |
|---|---|---|
| Gen1 | ◎ | ◎ |
| Gen2 | ◎ | ◎ |
| Gen3 | ◎ | ◎ |
| SATA-OOB | ◎ | ◎ |
| SAS | Tx | RX |
|---|---|---|
| Gen3 | ◎ | ◎ |
| Gen4 | ◎ | ◎ |
SAS (Gen3 /4 )
The SAS testing service currently offers the following test plans. These documents are constantly being updated to improve readability and to reflect the current specifications. Please contact us if you would like more information or have questions about the SAS testing service.
RX:
BERT (Bit Error Rate Tester)
- Anritsu MP1900 PG/ED
The MP1900A Signal Quality Analyzer incorporates a Pulse Pattern Generator (PPG) module for generating the highest-quality, highest-amplitude signals in the industry, as well as an Error Detector (ED) module with the highest input sensitivity available
Tx:
RT-Scope (Real Time Oscilloscope)
- Tektronix DPO75002SX (Data Measurement)
DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition
SATA (Gen1/2/3 )
The SATA testing service currently offers the following test plans. These documents are constantly being updated to improve readability and to reflect the current specifications. Please contact us if you would like more information or have questions about the SATA testing service.
RX:
BERT (Bit Error Rate Tester)

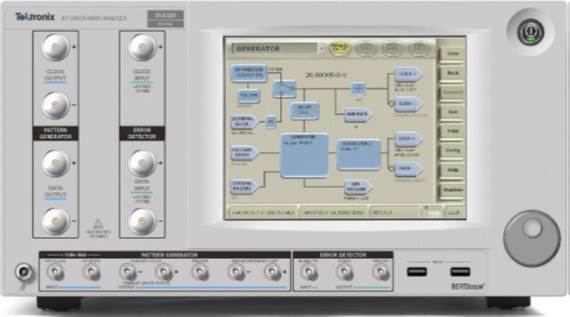

- Tektronix BERTScope BSX240
The MP1900A Signal Quality Analyzer incorporates a Pulse Pattern Generator (PPG) module for generating the highest-quality, highest-amplitude signals in the industry, as well as an Error Detector (ED) module with the highest input sensitivity available.
Tx:
RT-Scope (Real Time Oscilloscope)

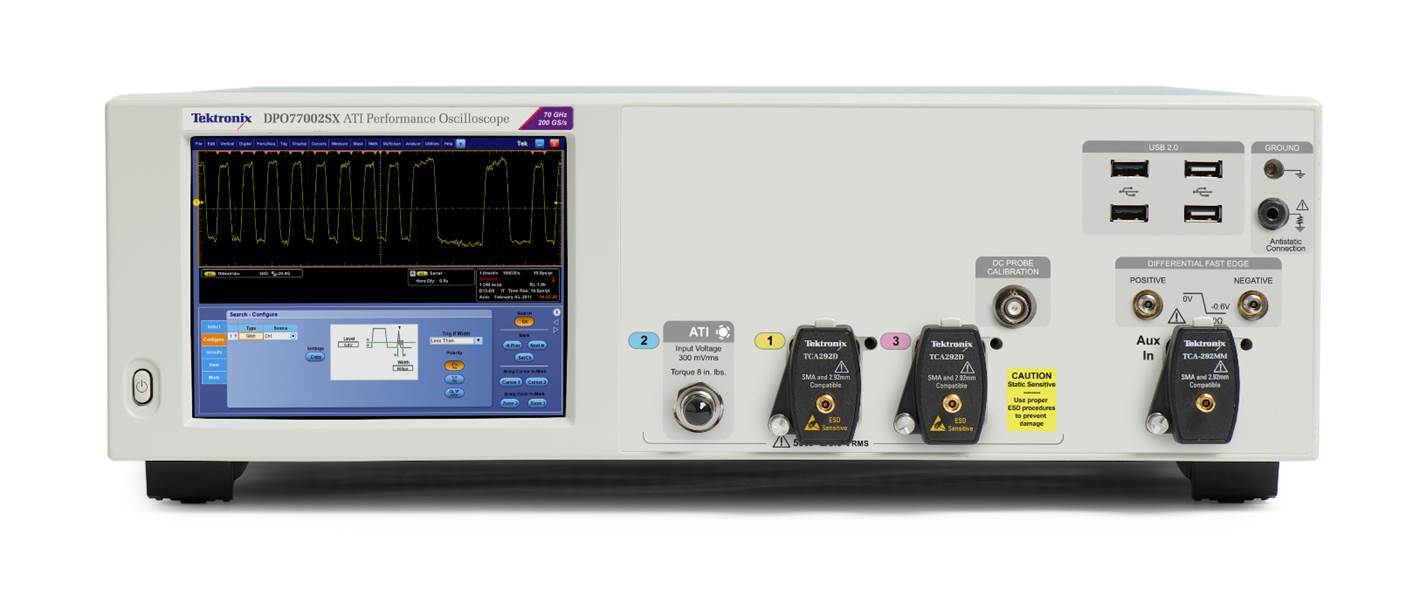

- Tektronix DPO75002SX(Data Measurement)

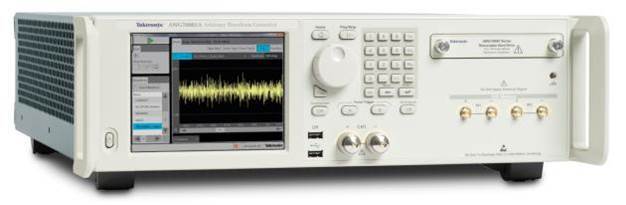

- Tektronix AWG70000(OOB testing)
DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition
