HDMI
HDMI technology enables end-to-end 8K and 4K solutions with higher refresh rates with a single cable for a seamless integration with the HDMI eco-system.
Multiple resolution support includes 5K and 10k resolutions for PC displays,digital signage, surveillance, and various commercial and industrial AV solutions.HDMI測試介紹
HDMI測試服務當前提供以下測試計劃。 這些測試會依據協會更新測試規範，以提高可信度並反映當前的規範。 如果您想了解更多關於HDMI的最新消息與服務，請聯繫我們或參考 HDMI官方網頁
- HDMI前期測試（ HDMI Pre-test）電氣訊號測試檢測
- HDMI除錯服務（ HDMI Debug Service）
- HDMI諮詢服務（ HDMI Consulting Service）
| HDMI | Source | Sink |
|---|---|---|
| 1.4 | ◎ | N/A |
| 2.0 | ◎ | N/A |
| 2.1 | ◎ | N/A |

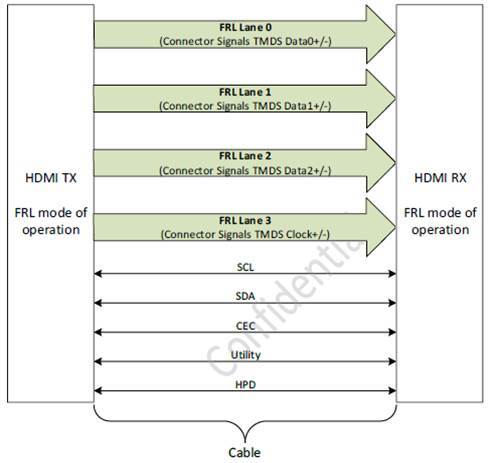

HDMI 2.1 FRL測試
HDMI® Specification 2.1 is the most recent update of the HDMI® specification and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, and resolutions up to 10K. Dynamic HDR formats are also supported, and bandwidth capability is increased up to 48Gbps.
| Rate per Lane | Number of Lanes (Mode) | |
|---|---|---|
 |
3 Gbps | 3 |
| 6 Gbps | 3 | |
| 6 Gbps | 4 | |
| 8 Gbps | 4 | |
| 10 Gbps | 4 | |
| 12 Gbps | 4 |
HDMI 1.4 / 2.0 / 2.1
The HDMI testing service currently offers the following test plans. These documents are constantly being updated to improve readability and to reflect the current specifications. Please contact us if you would like more information or have questions about the HDMI testing service
TX:
RT-Scope (Real Time Oscilloscope)
- Tektronix DPO75002SX*2(Data Measurement)
DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition
