Capabilities

• TBT/DP (Alt Mode), USB Type-C™ (Native Mode)
• Supports LFPS Pinging for USB compli-ance test pattern cycling
• Built in DisplayPort Receiver to enable source DUT compliance patterns
• Adjustable AUX amplitude settings for AUX sensitivity testing
• Lane Flip Automation

General Description

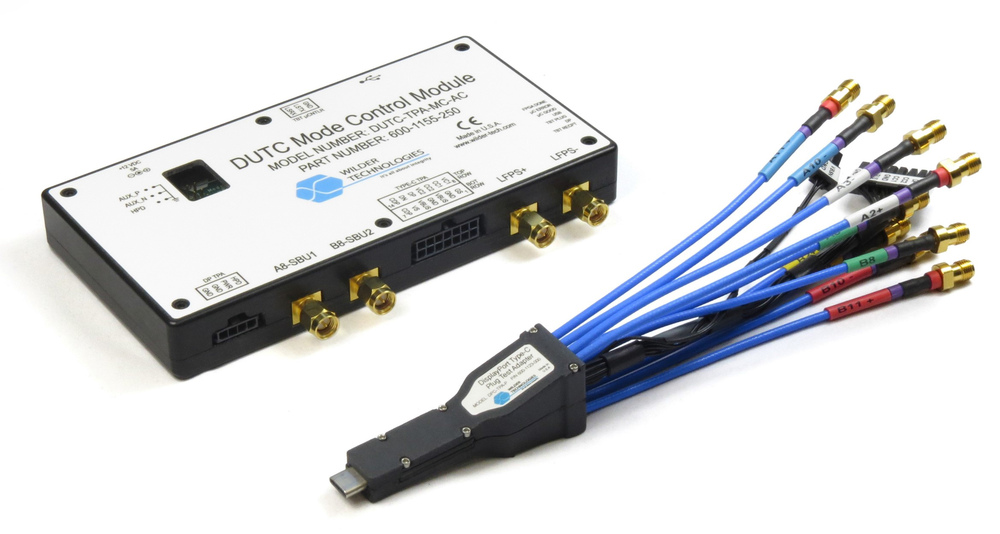

Wilder’s Alt-Mode solution allows for adja-cent Type-C testing by enabling users to switch into selected modes and carry out electrical validation without having to change TPA configuration. The side-by-side design provides a flexible, robust op-tion for DisplayPort™ Certification USB/Thunderbolt™ Pre-Certification.

DUTC Kit: 640-0840-000
DPC TPA Kit: 640-0800-000
USBC TPA Kit: 640-0834-000

Mated Insertion Loss (no de-embedding)

Mated Return Loss (no de-embedding)
