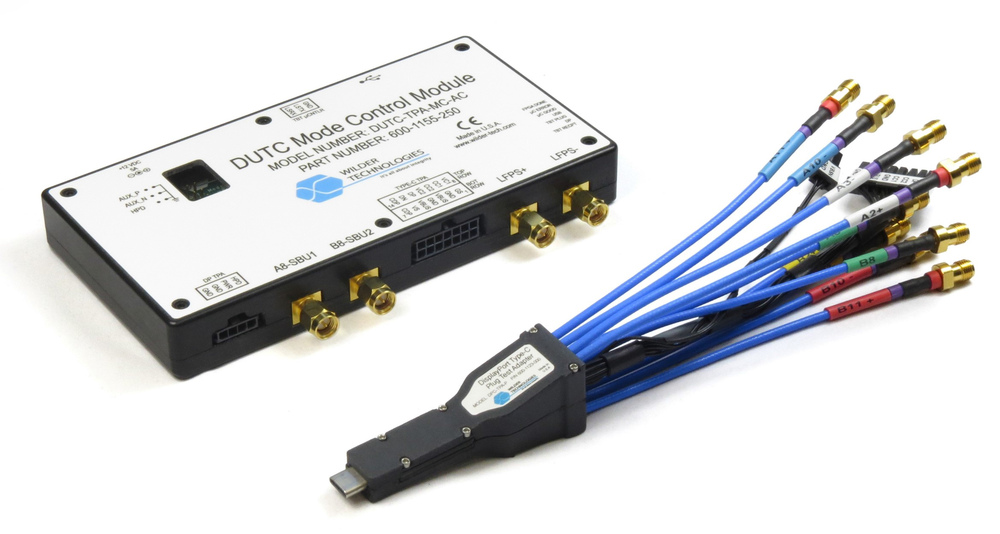

DUTC TYPE-C
Capabilities
- TBT/DP (Alt Mode), USB Type-C™ (Native Mode)
- Supports LFPS Pinging for USB compli-ance test pattern cycling
- Built in DisplayPort Receiver to enable source DUT compliance patterns
- Adjustable AUX amplitude settings for AUX sensitivity testing
- Lane Flip Automation
General Description
Wilder’s Alt-Mode solution allows for adja-cent Type-C testing by enabling users to switch into selected modes and carry out electrical validation without having to change TPA configuration. The side-by-side design provides a flexible, robust op-tion for DisplayPort™ Certification USB/Thunderbolt™ Pre-Certification.
DUTC Kit: 640-0840-000
DPC TPA Kit: 640-0800-000
USBC TPA Kit: 640-0834-000

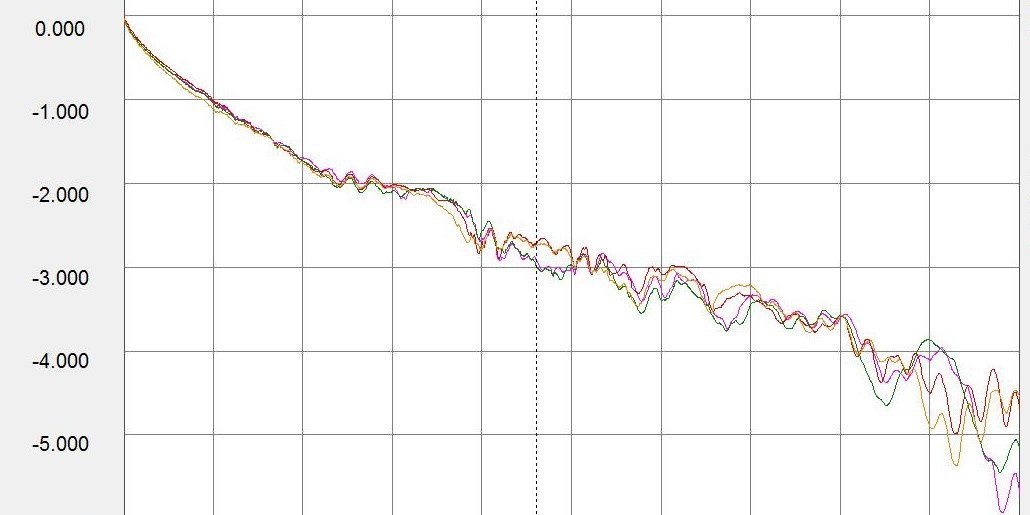

Mated Insertion Loss (no de-embedding)

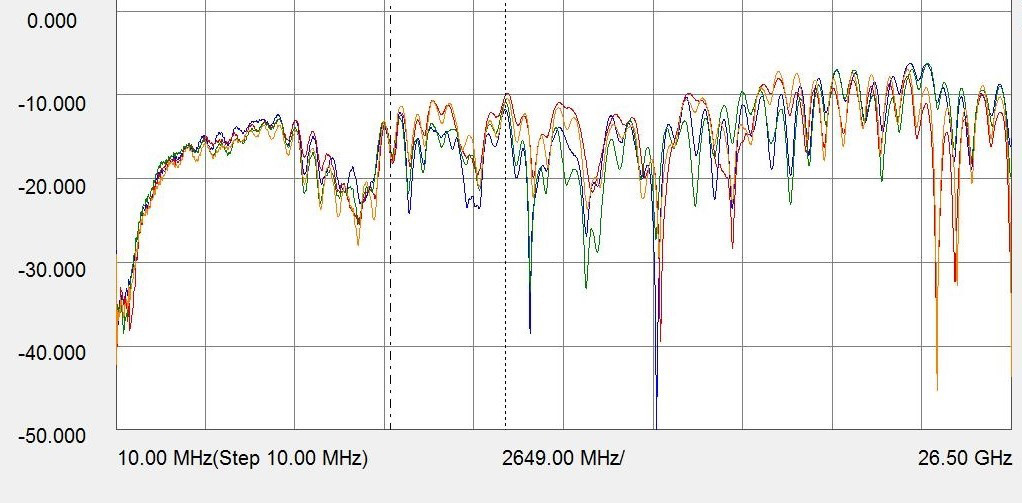

Mated Return Loss (no de-embedding)
