M.2 PCIe 5.0 Test Fixtures
Key features:

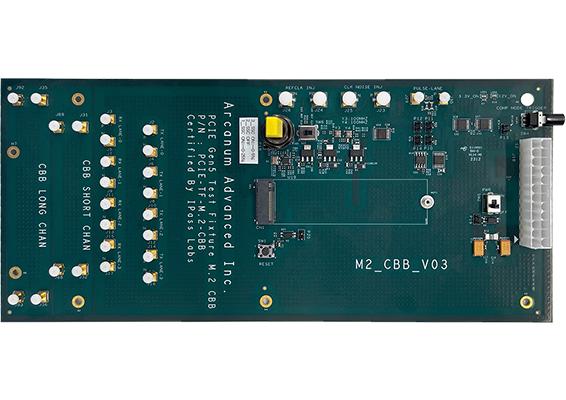

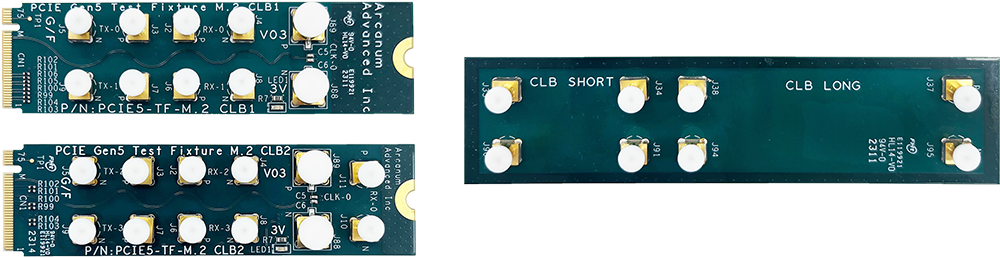

There are four separated boards: two CLBs, one CBB and one coupon
- Signal Integrity Board for M.2 Physical Layer Conformance.
- CLB supports PCIe5.0 (32GT/s) used for testing Transmitters.
- CLB needs additional Gen5 CEM (SIG-REV4) ISI Board for the testing.
- CBB supports PCIe5.0 (32GT/s) used for testing Receivers.
- MMPX connectoris 100% compatiblewith PCI-SIG CEM ISI board.
- Real testing result of loss budget is 7.83 dB
