U.2(NVMe) 測試治具
Key features:

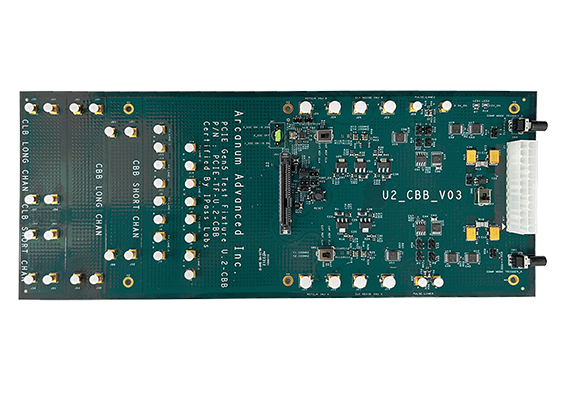

There are two separated boards: one CLB and one CBB.
- Signal Integrity Board for U.2(SFF-8693) Physical Layer Conformance.

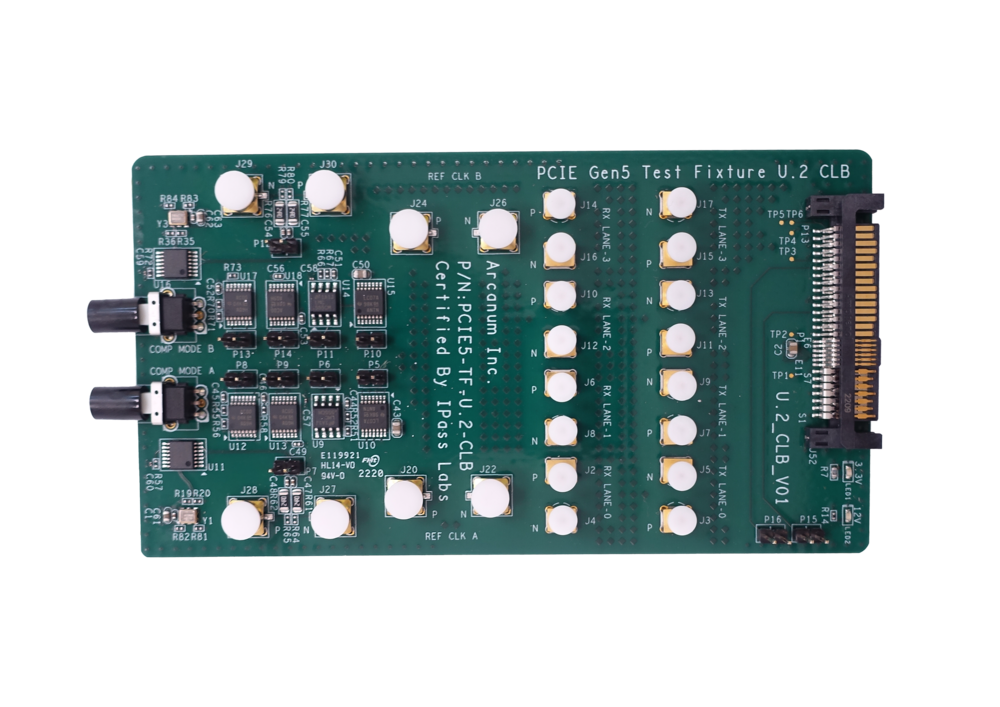

- CLB supports PCIe5.0 (32GT/s) used for testing Transmitters.
- CLB needs additional Gen5 CEM (SIG-REV4) ISI Board for the testing.

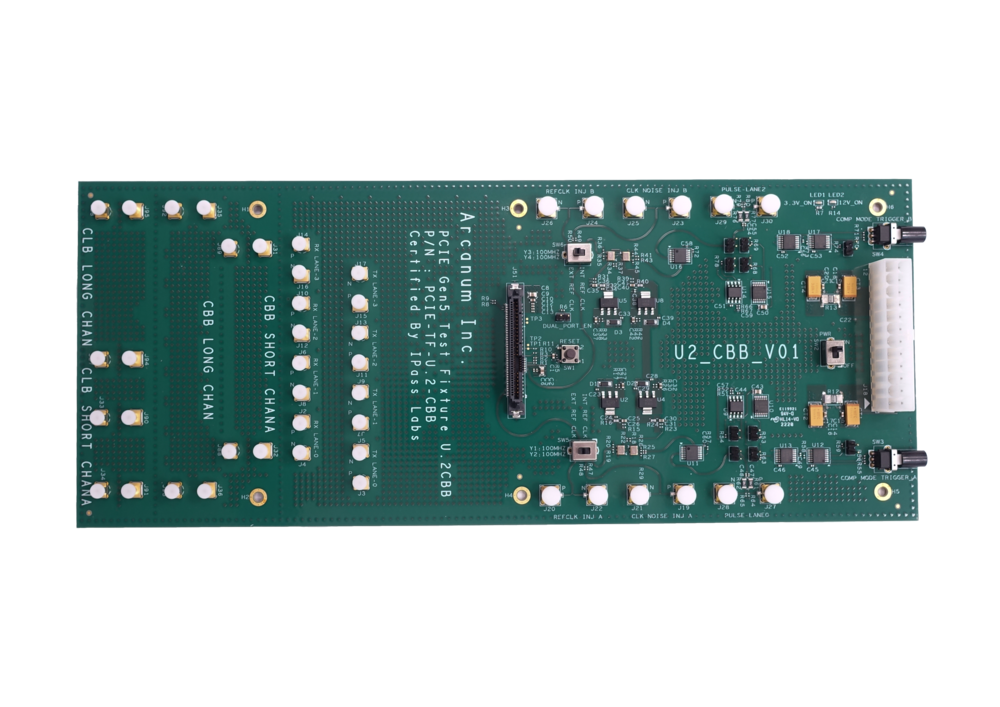

- CBB supports PCIe5.0 (32GT/s) used for testing Receivers.
- MMPX connectoris 100% compatiblewith PCI-SIG CEM ISI board.

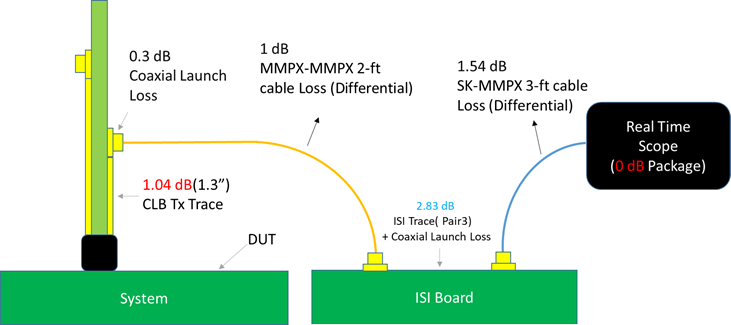

- Real testing result of loss budget is 6.71 dB
