Key features:

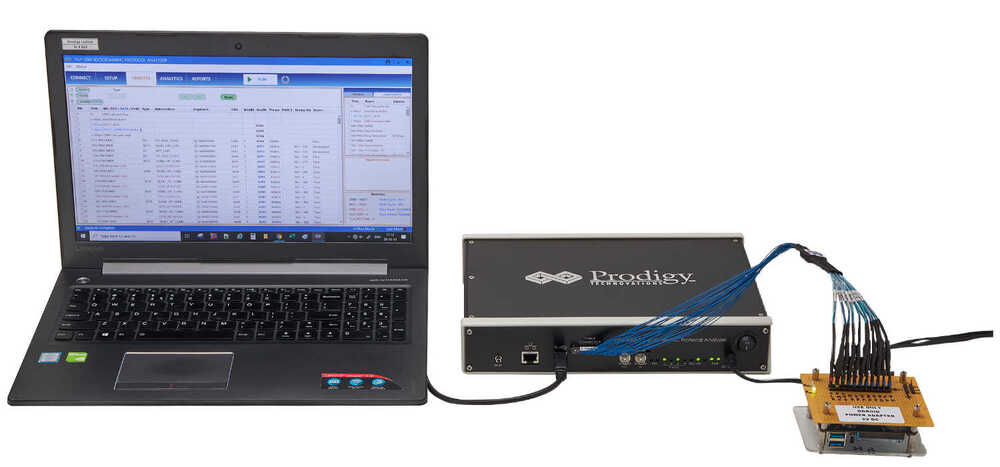

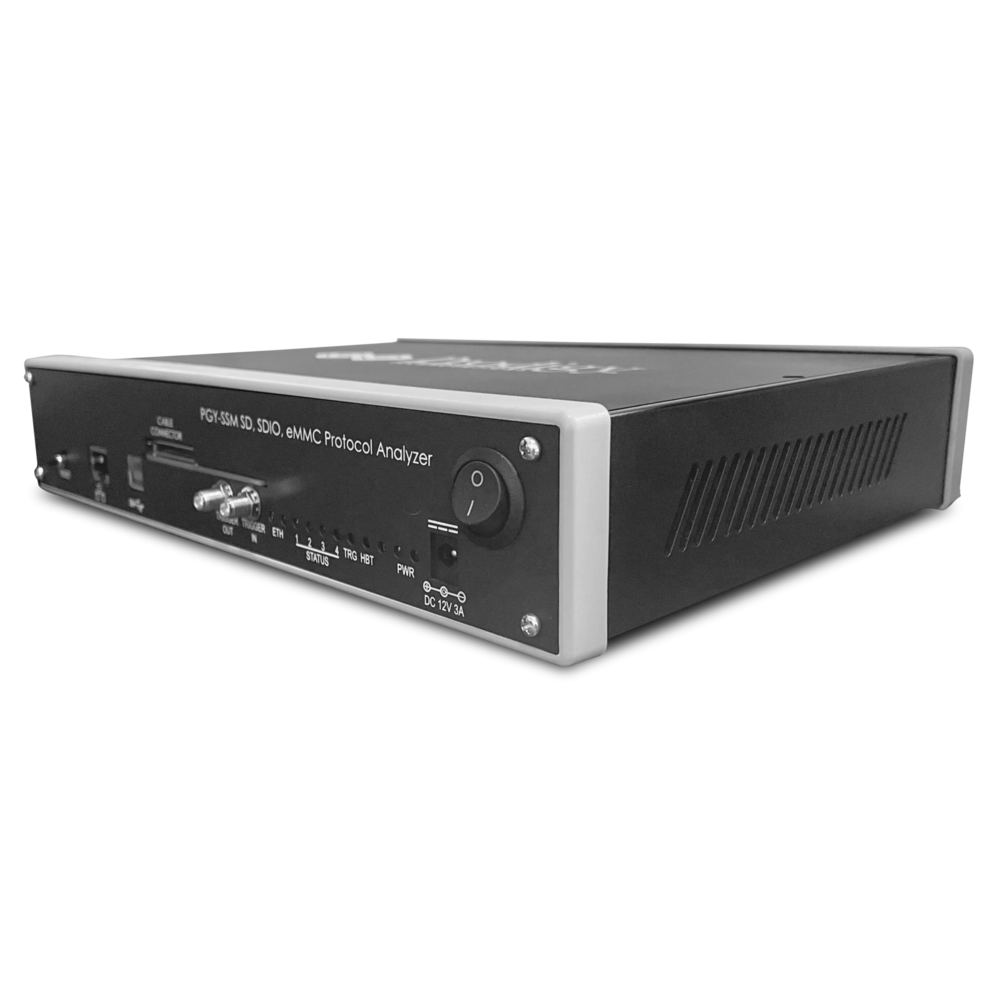

SD, SDIO, and eMMC Protocol Analyzer supports SD, SDIO, and eMMC for data rates up to 200MHz (HS400) DDR mode. SD, SDIO, and eMMC Protocol Analyzer is the industry’s first eMMC protocol analyzer that supports version 4.41, 4.51, 5.0, and 5.1 specifications. PGY-SSM Protocol Analyzer enables design and verification engineers to test and debug SD, SDIO, and eMMC by triggering command, response, data, or CRC errors. It also provides instantaneous decoding of Command, Response, CID, CSD, and Ext CSD registers. The Analytics feature offers an easy analysis of the graphical representation of command, response, data, and frequency of operation for the acquired duration.
